What is a CNC Spindle Motor?

A CNC spindle motor is a high-speed electric motor used in CNC machines to rotate cutting tools for machining operations. It is a key component in CNC systems that drives machining processes and affects cutting performance, machining accuracy, and surface finish. CNC spindle motors are used in milling, drilling, engraving, and cutting applications. They are designed for high-speed rotation, stable torque output, and continuous-duty operation. Most CNC spindle motors operate in the range of 18,000–24,000 RPM, making them suitable for machining materials such as wood, acrylic, aluminum, PVC, and other light metals.

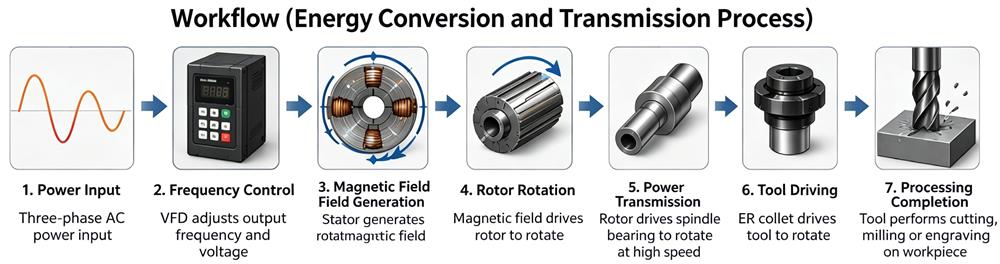

How a CNC Spindle Motor Works

A CNC spindle motor operates by converting electrical energy into precise mechanical rotation through electromagnetic induction, enabling high-speed and accurate machining processes.

Working principle: Electrical energy is converted into mechanical rotation through electromagnetic induction.
Magnetic field generation: The stator creates a rotating magnetic field that drives the rotor.
Power transmission: The rotor is directly connected to the spindle shaft, producing high-speed rotational output.
Tool driving process: The spindle shaft transmits rotation to the tool holder (collet), which firmly secures the cutting tool.
Machining operation: The rotating tool performs cutting, drilling, milling, and engraving on the workpiece.
Speed control system: A Variable Frequency Drive (VFD) regulates spindle speed.
Speed regulation method: The VFD adjusts frequency and voltage to precisely control motor speed based on material type and machining requirements.

spindle-motor-workflow

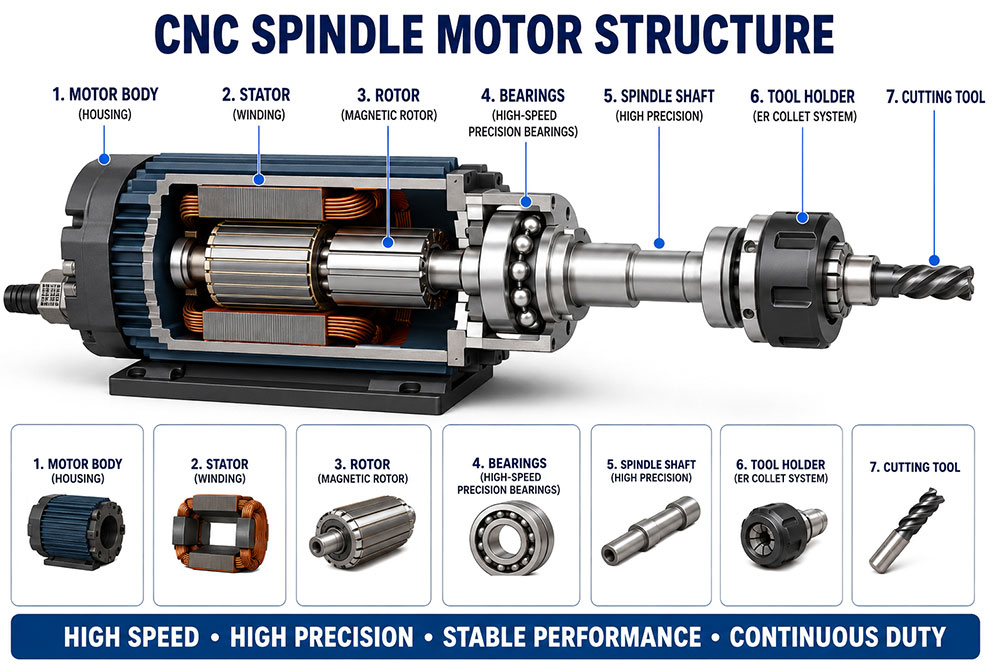

Main Components of a CNC Spindle Motor

A CNC spindle system is a precision assembly designed to deliver high-speed rotation, stable torque output, and accurate machining performance. It integrates multiple mechanical, electrical, and thermal control components to ensure reliable operation under different cutting conditions.

Spindle Motor Body: Provides structural support and generates rotational power.
Stator & Rotor: Produces electromagnetic force to drive spindle rotation.
High-Speed Bearings: Maintain smooth, low-friction, high-precision operation.
Spindle Shaft: Transfers rotation to the cutting tool with high rigidity.
ER Collet System: Securely holds cutting tools with minimal runout.
Cooling System (Air / Water): Prevents overheating and ensures thermal stability.
VFD Control Unit: Controls spindle speed through frequency adjustment for precise machining.

cnc-spindle-motors-structure

Types of CNC Spindle Motors

CNC spindle motors can be classified in different ways depending on engineering criteria such as cooling method, application, structure, and control system.Among these classification methods, cooling-based types are the most commonly used in industrial and CNC machining applications. Therefore, spindle motors are generally divided into two main types: air-cooled and water-cooled.In addition to cooling method, spindle motors can also be categorized by usage scenarios and structural design in more advanced industrial systems.

Air-Cooled Spindle Motor

Air-cooled spindle motors use a built-in fan system to dissipate heat generated during high-speed operation.This cooling method relies on airflow passing through the motor housing to maintain a stable operating temperature. Air-cooled spindle motors are commonly used in CNC engraving, small CNC routers, and general-purpose machining applications. An example is an 800W air-cooled spindle motor, which is widely used for precision engraving and light machining tasks.

Typical features:

High-speed operation up to 24,000 RPM
No external cooling system required
Simple installation and maintenance
Suitable for intermittent and medium-duty machining

Water-Cooled Spindle Motor

Water-cooled spindle motors use circulating liquid to regulate operating temperature. This cooling method provides more stable thermal control, especially during continuous and long-duration machining processes. Water-cooled spindle motors are widely used in woodworking production lines and light metal machining applications that require consistent performance over extended operation. For example, a 2.2kW water-cooled spindle motor is commonly used in woodworking and aluminum processing applications where thermal stability is critical.

Typical features:

Stable and low operating temperature
Reduced noise during operation
Suitable for continuous industrial use
Better performance under long machining cycles

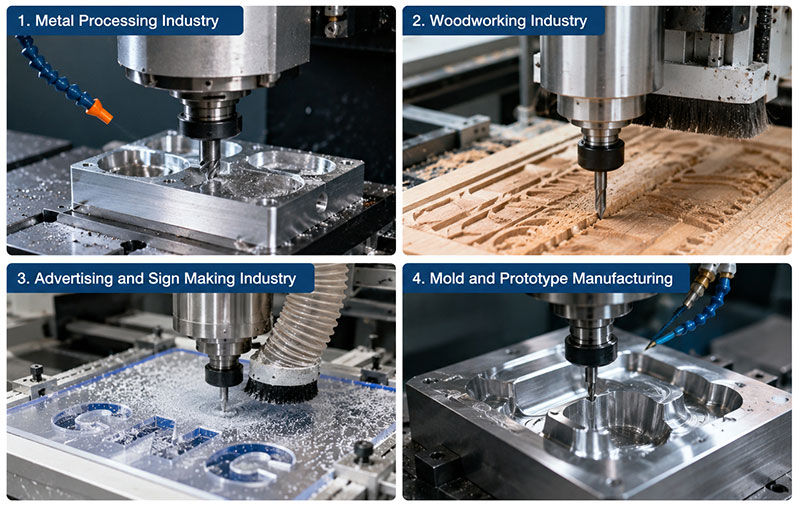

Applications of CNC Spindle Motors

CNC spindle motors are widely used in precision machining and automated manufacturing due to their high speed, stability, and accurate torque control. They support a wide range of materials and are essential in modern CNC production systems.

Metal Processing Industry: Applied in machining aluminum, brass, and soft steel. Provides stable torque and precise speed control for accurate cutting and reduced tool wear.
Woodworking Industry: Used for cutting, engraving, and carving wood materials such as MDF, plywood, and solid wood. High-speed rotation ensures smooth edges and high-quality surface finishing.
Advertising and Sign Making Industry: Used for engraving and cutting acrylic, PVC, and plastic sheets. Common in signage production, lettering, and decorative panel fabrication with fine detailing and clean edges.
Mold and Prototype Manufacturing: Used for precision machining of complex molds and custom components. Suitable for CNC prototyping, engraving, and small-batch production requiring high accuracy and repeatability.

applications-of-cnc-spindle-motors

How to Choose the Right CNC Spindle Motor

Selecting the right cnc spindle motor depends on several key factors, including material type, machining depth, tool size, production requirements, and operating environment. A proper selection ensures better machining accuracy, longer tool life, and stable CNC performance.

Selection Factor	Options / Range	Description
Power Selection	800W – 1.5kW	Suitable for engraving, light-duty machining, hobby CNC machines
	2.2kW – 3.5kW	Common for woodworking and general CNC machining
	4.5kW – 7.5kW	Used for heavy-duty industrial cutting and continuous production
Speed Requirements	18,000 – 24,000 RPM	Standard operating range for most CNC spindle motors
	High speed	Best for soft materials like wood and acrylic
	Lower cutting speed	Required for harder materials like aluminum and light metals
Collet Size Selection	ER11	Small tools, precision engraving
	ER20	Standard CNC machining applications
	ER25 / ER32	Large tools and heavy-duty cutting
Cooling Method	Air-cooled	Easy installation, suitable for light to medium-duty work
Cooling Method	Water-cooled	Better thermal stability, ideal for long continuous operation
VFD Compatibility	Variable Frequency Drive (VFD)	Required for spindle speed control
VFD Compatibility	Key functions	Stable speed control, overload protection, smooth acceleration/deceleration

Recommended CNC Spindle Motors

CNC spindle motors are available in a wide range of power ratings and configurations to meet different machining requirements, from precision engraving to heavy-duty industrial cutting. Standard industrial models typically cover a power range of 800W to 7.5kW, with both air-cooled and water-cooled options available depending on thermal and operational requirements. ATO provides a standardized range of CNC spindle motors from 800W to 7.5kW, suitable for different CNC machining system configurations. In practical applications, these spindle motors are typically selected as part of complete CNC machine setups to meet varying precision, stability, and production requirements.

Model	Power	Speed Range	Collet System	Cooling Type	Typical Applications
ATO-SPINDLE-A800	800W	Up to 24,000 RPM	ER11	Air / Water cooled	Engraving, small CNC machines, precision carving
ATO-SPINDLE-A2200	2.2kW	18,000–24,000 RPM	ER20	Air / Water cooled	Woodworking, general CNC machining
ATO-SPINDLE-A4500	4.5kW	18,000–24,000 RPM	ER25	Air / Water cooled	Aluminum machining, continuous production
ATO-SPINDLE-A7500	7.5kW	Typical 18,000 RPM	ER32	Air cooled	Heavy-duty industrial cutting, high-load machining

CNC Spindle Motor Troubleshooting Guide

CNC spindle motors may encounter issues during long-term operation due to overload, improper setup, or insufficient maintenance. The following table summarizes common faults, possible causes, and recommended solutions to help quickly diagnose and resolve problems, ensuring stable performance and extending service life.

Fault	Possible Causes	Recommended Actions
Overheating	Overload operation, insufficient cooling, incorrect VFD parameters	Reduce load, ensure proper ventilation, adjust VFD speed and frequency settings
Excessive Vibration or Noise	Bearing wear, tool imbalance, loose collet installation	Replace worn bearings if needed, balance cutting tool, re-clamp tool properly
Poor Machining Accuracy	Spindle runout, tool wear, improper tool clamping	Check spindle alignment, replace worn tools, ensure correct clamping force
Motor Not Starting	Wiring issues, VFD incompatibility, unstable power supply	Verify wiring connections, check VFD settings, stabilize power input
Reduced Performance Over Time	Lack of maintenance, dust accumulation, prolonged overload operation	Perform regular cleaning and maintenance, avoid continuous overload operation

Conclusion

A spindle motor is the core driving component of any CNC machine, directly affecting machining precision, efficiency, and surface quality. Choosing the right spindle motor requires careful consideration of power, speed, cooling method, and application requirements. With a wide range of options from 800W to 7.5kW, including both air-cooled and water-cooled designs, CNC spindle motors can be tailored for everything from light engraving to heavy industrial machining. Proper selection and operation not only improve machining performance but also extend equipment lifespan and reduce long-term production costs.

FAQ

Q1: What materials can CNC spindle motor machine?
Wood, MDF, acrylic, PVC, plastics, aluminum, brass, and light metals.
Q2: What is the typical speed range?
Usually 18,000–24,000 RPM, depending on application and material.
Q3: Air-cooled vs water-cooled?
Air-cooled is easier to use; water-cooled offers better temperature stability for long operation.
Q4: Why is a VFD needed?
It controls spindle speed by adjusting frequency and voltage.
