    Current Sensor Price List

    Many people do not know that current sensor is also known as magnetic sensor which converts a large current into a small current with the same frequency and phase to facilitate measurement or isolation. According to different transformation principles, current sensors generally have five technologies: Hall effect, fluxgate, electromagnetic induction, Rogowski coil (the principle of electromagnetic induction and Ampere’s loop law), and shunt (Ohm’s theorem). This article is to introduce the features of ATO current sensors and their prices.

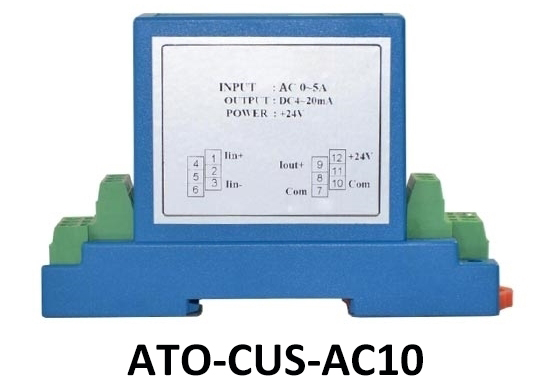

    ATO Current Sensor Price List

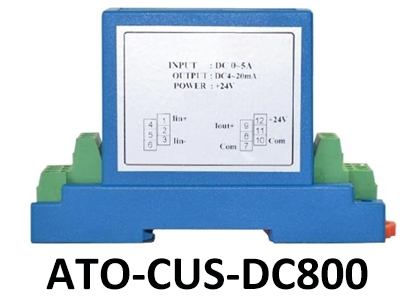

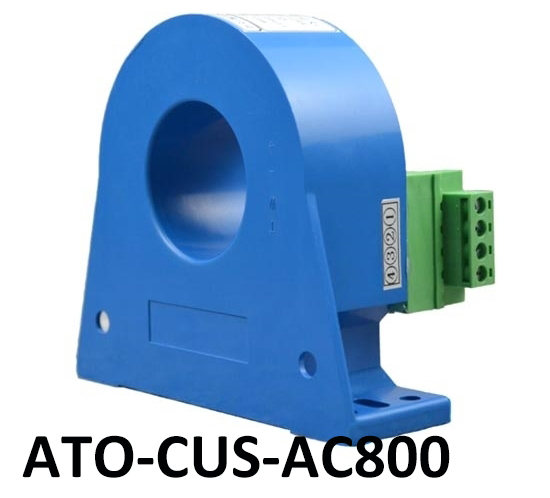

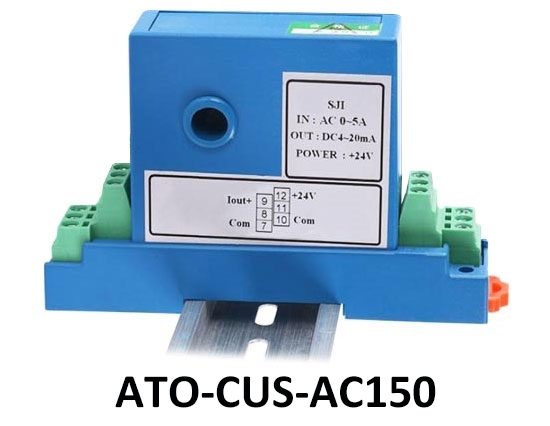

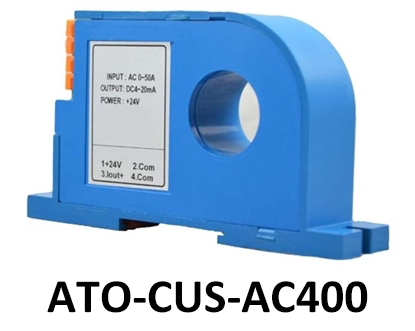

    Product AC current sensor AC current sensor 400A AC current sensor 400A AC800 current sensor current sensor DC800
     Measuring range of input current AC 0-10A AC 0-150A AC 0-400A AC 0-800A DC 0-1mA/ 0-5mA/ 0-20mA/ 0-50mA/ 0-100mA/ 0-500mA/ 0-1A/ 0-5A/ 0-10A

    Output signal

    DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable) DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable) DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable) DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable) DC 4-20mA, DC 0-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable)

    Power supply

    DC 24V, DC 12V, AC 220V (customizable) DC 24V, DC 12V, AC 220V, AC 110V (customizable) DC 24V, DC 12V, AC 220V, AC 110V (customizable) DC 24V, DC 12V, AC 220V, AC 110V (customizable) DC 24V, DC 12V, AC 220V, AC 110V (customizable)
    Shipping weight 0.5kg 0.5kg 0.5kg 0.5kg 0.5kg
    Price $72.63 $66.35 $69.26 $88.25 $75.56

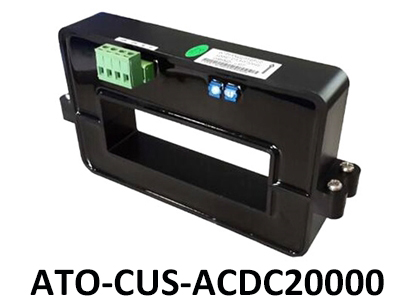

    Hole Type of Current Sensor Price List

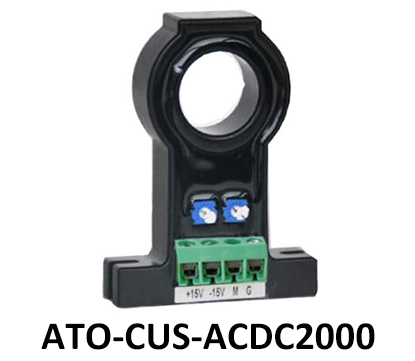

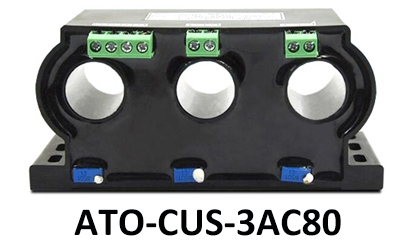

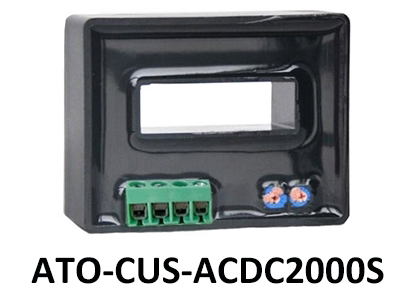

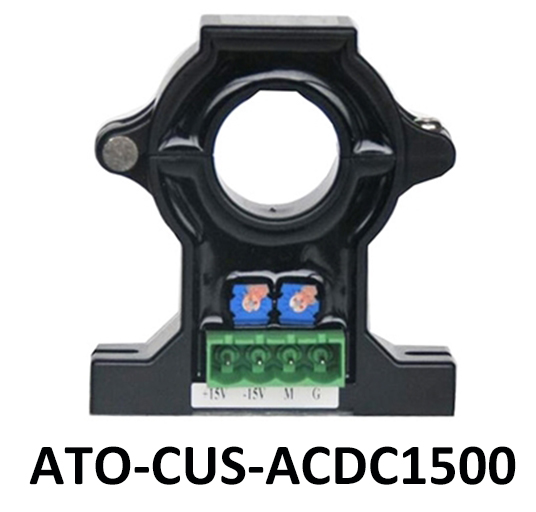

    Product ACDC1500 hall effect current sensor ACDC2000 hall effect current sensor ACDC2000 current transducer hall effect current sensor AC80 current transducer
    Hole diameter 20/40/55mm 20/32.5/40/60mm 20.5*10.5/43*13/52*15/52*32mm 64*16m/82*32/104*36/132*52mm /
    Measuring range of input current AC/DC 0-50A ~ 0-500A/1000A/1500A AC/DC 0-50A ~ 0-500A/800A/1500A AC/DC 0-50A ~ 0-500A/800A/1500A/2000A AC/DC 0-400A ~ 0-2000A/3000A/5000A/20000A 3 phase AC 0-0.5A ~ 0-80A
    Output signal 0-5VDC, 0-±5VDC (for bidirectional current measurement) 0-4VDC, 0-5VDC 0-4VDC, 0-5VDC 0-5VDC, 0-±5VDC (for bidirectional current measurement) DC 4-20mA, DC 0-20mA, DC 0-5V, DC 0-10V
    Power supply ±15VDC ±10% ±15VDC ±15VDC ±15VDC ±15VDC
    Shipping weight 1kg 1kg 1kg 1kg 1kg
    Price $136.91 $151.1 $153.85 $394.95 $161.39

    Note: the informations on the table are just for your reference, if you want to know more details, please click the picture.

    It is understood that a sensor ensures stability when measured under specific conditions. The maximum value of primary-side current it can measure is a general term for equipment or devices that can be measured according to regulations and converted into usable output signals according to certain rules, usually consisting of a sensitive element and a conversion element.

    With the development of frequency conversion technology and energy saving technology, there is a need to accurately assess the energy efficiency of various frequency conversion speed control devices, while electromagnetic voltage and current sensor can only accurately measure the power of a sinusoidal circuit at working frequency.

    After reading this article, everyone knows the principle of current sensor. It can play an important role in many aspects of our lives and is indispensable. If you have any questions, please leave a comment or contact us for more information.
