    5 Frequency Control Methods for VFD

    A variable-frequency drive (VFD) is a type of motor drive used in electro-mechanical drive systems to control AC motor speed and torque by varying motor input frequency and, depending on topology, to control associated voltage or current variation. VFDs can be used to control AC motor speeds by changing the motor's frequency without sacrificing the output power of the motor. This is done by turning the speed pot (explained in section three) of an AC motor drive.

    Variable Frequency Drive Price List

    ATO sells VFD's power range from 1/2hp to 300hp, include single phase input and output VFDs from 1/2hp to 7.5hp, 110v/120v input VFDs from 1hp to 7.5hp, single phase input to three phase output VFDs from 1/2hp to 10hp, three phase input/output VFDs from 1hp to 300hp. All VFDs are manufacturer direct sale and quality guaranteed. Widely used in fans, pumps, lathes, cable machinery, printing and dyeing equipment, chemical machinery, plastic machinery, etc. The following are ATO variable frequency drive price lists for your reference. If you want more information, please go to ATO VFD products page.

    VFD for industrial agitator

    The traditional industrial agitator usually conducts no regulation or regulates the speed in mechanical method. The speed regulation in mechanical method will increase the loss of the industrial agitator. Meanwhile, the industrial agitator will work in fluctuating status. Furthermore, it will also work in the status of "big rated power with small load power", which is quite not economic. The motor power of the industrial agitator in operating under the frequency conversion speed control is similar to its characteristics of the revolving speed and pump load. Using VFD for speed regulation will obtain a substantial power saving rate.

    VFD for incense stick machine

    Frequency conversion technology is utilized to realize soft start and soft stop. The characteristics of speed up and speed down are utilized to increase the start and stop time of the motor. Take the motor of 1.5KW as an example, the motor employs the slowdown motor with a reduction ratio of 1:10. Through the reversing gear, the motor will change from the revolving movement into the straight line movement. Each revolving will realize one pushing action. When the incense stick goes through the discharging bucket, the stirring device for discharging will be driven with the chain drive organization while the motor is revolving. The material pushing jacket will be filled with incenses and then be extruded outside through pushing. In addition, As to the pressure(discharging quantity), the operator can adjust the revolving eccentric wheel to change the journey of the material pushing jacket and increase its discharging space, thus achieving the pressure change. Completing the whole process only needs about 0.4s, then one incense stick is finished. The VFD has been debugged for incense stick manufacturing, so as to reach the manufacturing requirements thoroughly.

    VFD for straightening machine

    Loading trolley, uncoiling machine, board swaging device, six-layer straightening machine, tracking shearing system, conveying and lifting work platform, double-layer pneumatic layout shelf, hydraulic system, electrical control system. The overall system adopts the VFD, PLC, touch screen, rotary encoder and other components to constitute the automatic control system of the production line. Under the premise of giving consideration to both horizontal shearing precision and manufacturing efficiency, through utilizing the high-speed counting function of the PLC and the speed regulating and controlling function of the VFD, so as to control the starting, operating, speed reducing, crawling and accurate stopping of the straightening roll and pressing roll effectively, thus realizing the high-efficient and automatic cutting to length of the metal plate.

    VFD in concrete pile production line

    In the entire manufacturing process of the concrete pile, molding on the centrifuge is the most vital step. This process includes: Cloth distribution, second level transition, compacting three stages. Different stages have different requirements to the revolving speed and time of the tubular pipe. In addition, the tubular pipes of different wall thickness and length will have different requirements to the revolving speed and time of the three stages. This requires the VFD to be able to regulate the working stage of the motor according to the different types of concrete piles. It will operate different speed and time at different stages to ensure the product quality of the concrete pile.

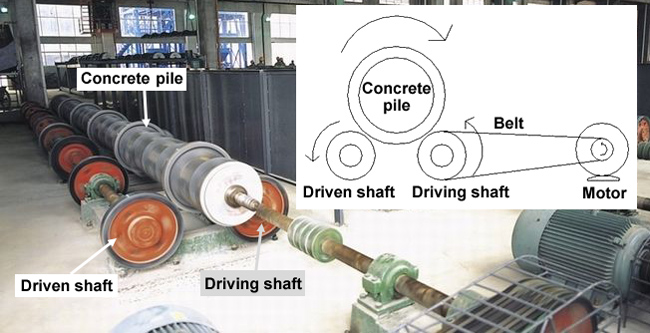

    working principle of concrete pile centrifuge

    VFD for wire-cut EDM

    The wire-cut EDM is to utilize the metal linear tool electrode (or named as wire electrode) to process workpieces with the principle of impulsive discharge to erode the metals. High speed wire-cut EDM is applied in the processing of the metal pieces with high precision, complicated shape, especially the mould and so on.

    VFD for tower crane

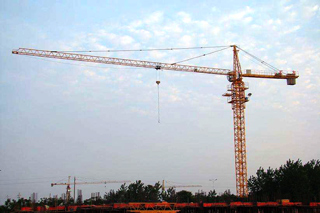

    Because the induction motor has incomparable advantages: Simple and solid structure, cheap price, and easy maintenance. tower craneSo using the means of VFD dragging three-phase induction motor replaces the means of traditional speed regulating, can solve the problem of high failure rate of the tower crane fundamentally. Moreover, it has advanced technology and significant energy saving effect. It is the ideal transmission controlling device of the tower crane.

    VFD for overhead crane

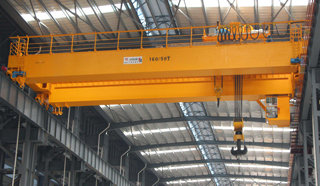

    The overhead crane is a kind of hoisting machinery with quite extensive application in the industrial and mining enterprise. Its operating organism is constituted by three basically independent dragging systems, which are respectively the cart dragging system, dolly dragging system and hook dragging system. This article ATO will take the practical application of VFD for overhead crane improvement in thermal power plant as the example, illustrating the application and improvement scheme of VFD for the overhead crane comprehensively.
    overhead crane

    VFD for Air Compressor

    The VFD speed control system regards the network pressure as the control object. The pressure transmitter changes the pressure in the air storage tank into the electrical signal to send into the PID regulator inside the VFD, so as to compare with the pressure setting value. Then calculation will be made according to the set PID control mode based on the difference value. The control signal will be generated to control the output signal and inverter frequency of the VFD, thus adjusting the revolving speed of the induction motor, so as to maintain the practical pressure to be always as the setting pressure.

    VFD for hydroextractor

    According to the manufacturing technology of the hydroextractor, the multi-speed functional control of the VFD can be used. The hydroextractor with VFD control system belongs to the approximate constant torque load with big inertia. Therefore, the system requirements can be reached by configuring braking unit and braking resistor on the basis of selecting the AC converter. The built-in braking unit of the30hp VFD and below can not only save space, but also save the cost.

    VFD for circular knitting machine

    This article ATO summarizes how to apply and debug the VFD for the circular knitting machine in one textile mill. ATO chooses the non-inductive vector VFD. It adopts current vector control, its precise control as well as the characteristics of low-frequency stability and large torque, realizing the functions of big starting torque, stable operation, quick stop and so on of the circular knitting machine.

    VFD for industrial washing machine

    The working principle of the automatic industrial washing machine is: under the unified deployment and management of the time schedule controller. The VFD controls the induction motor to carry out positive and negative revolving uninterruptedly, thus achieving the non-synchronous movement of the water and the clothes, so as to enable the water and the clothes to rub and knead, thus being cleaned.

    VFD for ball mill

    For a long period, the chemical, cement, ceramic industries and so on normally adopt the ball mill to grind the raw materials. Usually, the decompression start-up mode is employed. The high starting current has great shocks to the equipment and power grid. Meanwhile, in working frequency, it is easily to over grid the materials. The required grinding circle is long, with low grinding efficiency and high unit product consumption. This promotes people to study and develop the ball mill system with smooth start, high grinding efficiency, high output and low consumption. This is exactly the VFD control system.

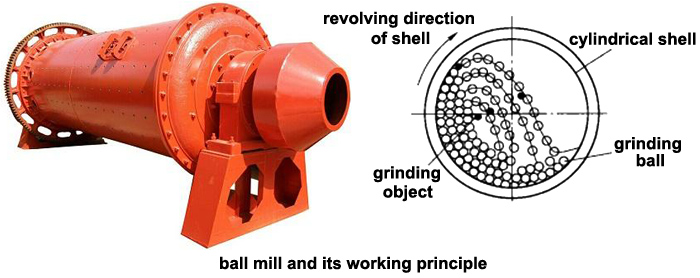

    working principle of ball mill

    VFD for turning rolls

    The turning rolls are the devices, which drive the cylinder-shaped (or cone-shaped) weldment to rotate with the help of the friction force between the weldment and the driving rollers. The self-aligning turning rolls are suitable for welding the round cylinder. It can regulate by itself according to the size of the cylinder. There are several specifications for the customer to choose. The self-aligning turning rolls include two groups of main and vice devices for one set, which means to four wheels for each device: self-aligning active turning rolls and self-aligning passive turning rolls. The wheel is fabricated in the inner iron core and outer rubber structure. Therefore, it is durable in use, free of any vibration. The operation of the active turning rolls is synchronously driven by the speed regulating motor through two worm gear reduction box. Thus, turing rulls can realize stepless speed variating by using ATO VFD.
    self-aligning turning rolls

    VFD for wire drawing machine

    The wire drawing machine is one of the main equipment of the metal wire processing as well as the cable and wire industry. It is mainly used to process the metal wires into the fine lines of various specifications. It usually constitutes the paying off, water cooling, winding up, winding displacement and other components. Its electric drive part is mainly realized by paying-off motor, winding-up motor and winding displacement motor. The wire drawing machine belongs to the constant-torque load. Its characteristics require that the VFD has a big start-up torque and can satisfy the full-load output in low speed. Meanwhile, it requires realizing the coordinated control of several motors in high precision percentage.

    VFD for roots blower

    When the roots blower has went through improvement by VFD, the system can realize soft starting and soft stopping, so as to reduce the shock of the system to the power grid in start-up, thus reducing the system start-up times and ensuring a stable operation. What's more, because of the deceleration of the revolving speed in roots blower operation, it can reduce the mechanical wear and prolong the operating life of both the motor and the roots blower. If the system employs pressure closed-loop control improvement, the fully automatic control and unattended operation can be realized.

    VFD for air jet loom

    In recent years, as the increasing drastic market competition and the improving of the electromechanical integration technology in textile machinery, the textile machines at home and abroad generally enter into the era of frequency control and drive. The frequency control of the speed regulating replaces the traditional machine structure. It has been widely adopted to the shuttleless loom and basic textile equipment, such as blowing, cotton carding, lap forming, roving, spinning, spooling, warping, slashing, and the other main technological processes. What is more, the newly developed textile machines have adopted VFD to control motor speed without an exception, which has greatly improved the reliability of the textile machine, textile quality and automation degree.

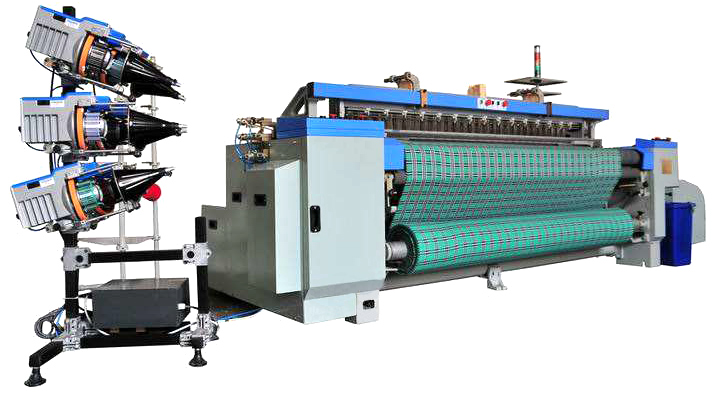

    air jet loom

    VFD for CNC machine

    Here ATO will take the application of high-performance vector VFD in a CNC machine factory as an example, to discuss about the frequency conversion control technique of CNC machine.

    VFD for plastic extrusion machine

    The advantages of VFD controls plastic extrusion machine

    1. VFD controls the driving motor of the main engine and auxiliary engine, satisfy the required revolving speed and power of the process, make sure that the main engine and auxiliary engine can operate coordinately. ATO VFD realize the automatic control of the whole unit, ensure good quality and high yield.
    2. Realize remote control, fine adjustment of the speed.

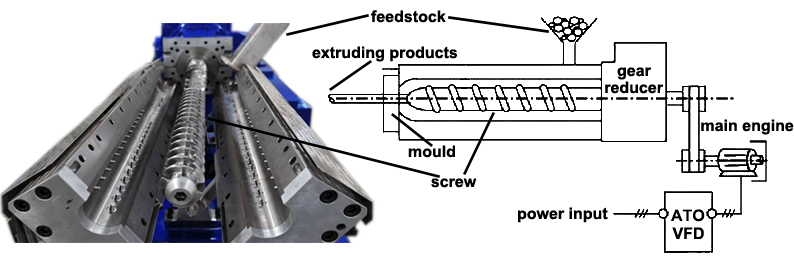

    principle of vfd control plastic extrusion machine
