Plating Rectifier Price List
A plating Rectifier is a rectifier device, which is a high-frequency switching power supply device that converts AC to DC. It has two main functions: first, it changes alternating current (AC) into direct current (DC) and supplies load or inverter after filtering; Second, it provides charging voltage to the battery. Therefore, the plating rectifier also acts as a charger.

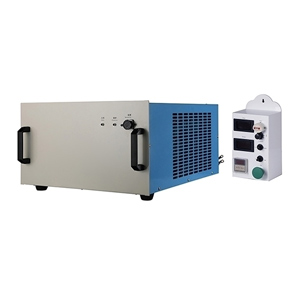

In order to meet your different requirements, ATO provides a series of forced air cooling plating rectifiers, feature with higher efficiency and more reasonable price, continuously adjustable current from 100A to 6000A, three-phase four-wire 50-60Hz 380V/ 400V/ 415V/ 480V AC input voltage and 10V/ 12V/ 15V/ 24V DC output voltage. (Wide range of 220-1000V AC input, 8-500V DC output and higher output current are customizable). They adopt pulse width modulation (PWM) as the control circuit and world-famous IGBT power modules, equipped with standard antiseptic remote controller box, separate the power from the plating tank. Compared with manual operation, it is more reliable and easy to operate.
100A-1000A Plating Rectifier Price List
The input voltage is optional: 380V / 400V / 415V / 440V / 460V / 480V AC
| SKU | Output Current | Weight | Output Voltage | Price |
| ATO-HI-100 | 100A | 20kg | 10V DC | $1,340.24 |
| 12V DC | $1,486.02 | |||
| 15V DC | $1,573.38 | |||
| 24V DC | $1,795.71 | |||
| 36V DC | $1,882.76 | |||
| 48V DC | $2,023.78 | |||
| 60V DC | $2,162.88 | |||
| ATO-HI-200 | 200A | 23kg | 10V DC | $1,443.49 |
| 12V DC | $1,579.75 | |||
| 15V DC | $1,646.96 | |||
| 24V DC | $1,831.74 | |||
| 36V DC | $1,957.88 | |||
| 48V DC | $2,178.63 | |||
| 60V DC | $2,377.71 | |||
| ATO-HI-300 | 300A | 26kg | 10V DC | $1,566.38 |
| 12V DC | $1,721.67 | |||
| 15V DC | $1,770.74 | |||
| 24V DC | $2,033.62 | |||
| 36V DC | $2,194.55 | |||
| 48V DC | $2,311.06 | |||
| 60V DC | $2,470.03 | |||
| ATO-HI-500 | 500A | 35kg | 10V DC | $1,968.25 |
| 12V DC | $2,104.83 | |||
| 15V DC | $2,241.37 | |||
| 24V DC | $2,537.47 | |||
| 36V DC | $2,707.01 | |||
| 48V DC | $2,933.63 | |||
| 60V DC | $3,096.90 | |||
| ATO-HI-1K | 1000A | 60kg | 10V DC | $2,849.23 |
| 12V DC | $2,985.81 | |||
| 15V DC | $3,122.35 | |||
| 24V DC | $3,618.45 | |||
| 36V DC | $3,787.99 | |||
| 48V DC | $4,114.61 | |||
| 60V DC | $4,277.88 |
1500A-6000A Plating Rectifier Price List
| SKU | Output Current | Weight | Output Voltage | Price |
| ATO-HI-1d5K | 1500A | 74kg | 10V DC | $3,348.31 |
| 12V DC | $3,584.89 | |||
| 15V DC | $3,821.43 | |||
| 24V DC | $4,317.53 | |||
| 36V DC | $4,487.07 | |||
| 48V DC | $4,813.69 | |||
| 60V DC | $4,976.96 | |||
| ATO-HI-2K | 2000A | 85kg | 10V DC | $3,903.08 |
| 12V DC | $4,239.66 | |||
| 15V DC | $4,376.20 | |||
| 24V DC | $5,242.30 | |||
| 36V DC | $5,541.84 | |||
| 48V DC | $5,868.46 | |||
| 60V DC | $6,131.73 | |||
| ATO-HI-3K | 3000A | 102kg | 10V DC | $5,846.78 |
| 12V DC | $6,380.93 | |||
| 15V DC | $6,519.90 | |||
| 24V DC | $7,379.41 | |||
| 36V DC | $7,785.54 | |||
| 48V DC | $8,112.16 | |||
| 60V DC | $8,375.43 | |||
| ATO-HI-4K | 4000A | 170kg | 10V DC | $6,904.62 |
| 12V DC | $7,438.77 | |||
| 15V DC | $7,577.74 | |||
| 24V DC | $8,837.25 | |||
| 36V DC | $9,243.38 | |||
| 48V DC | $9,670.00 | |||
| 60V DC | $10,033.27 | |||
| ATO-HI-5K | 5000A | 220kg | 10V DC | $8,281.36 |
| 12V DC | $8,815.51 | |||
| 15V DC | $8,954.48 | |||
| 24V DC | $10,413.99 | |||
| 36V DC | $10,820.12 | |||
| 48V DC | $11,246.74 | |||
| 60V DC | $11,610.01 | |||
| ATO-HI-6K | 6000A | 270kg | 10V DC | $9,920.48 |
| 12V DC | $10,454.63 | |||
| 15V DC | $10,593.60 | |||
| 24V DC | $12,353.11 | |||
| 36V DC | $12,759.24 | |||
| 48V DC | $13,185.86 | |||
| 60V DC | $13,649.13 |
Note: The prices in the table are just for your reference. For more information, please go to the product page.
